Seeburg Acoustic Line Gsub 1501dp++

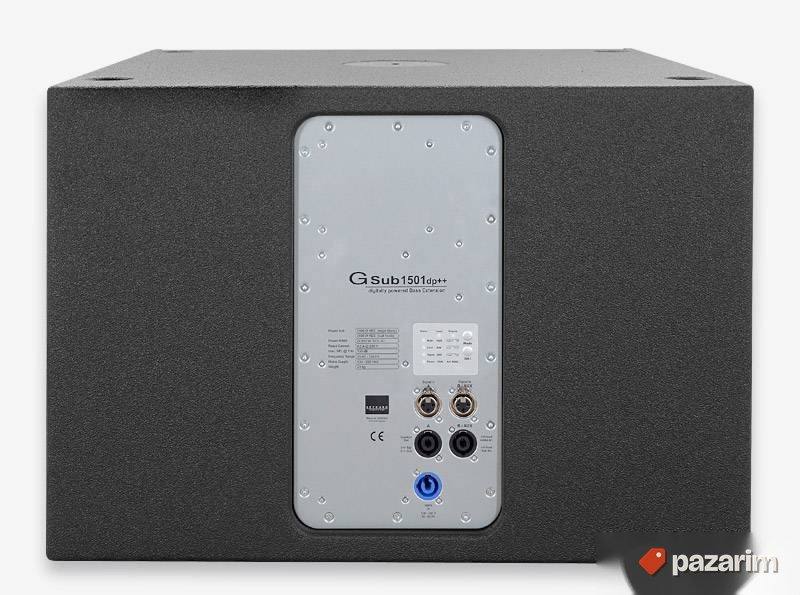

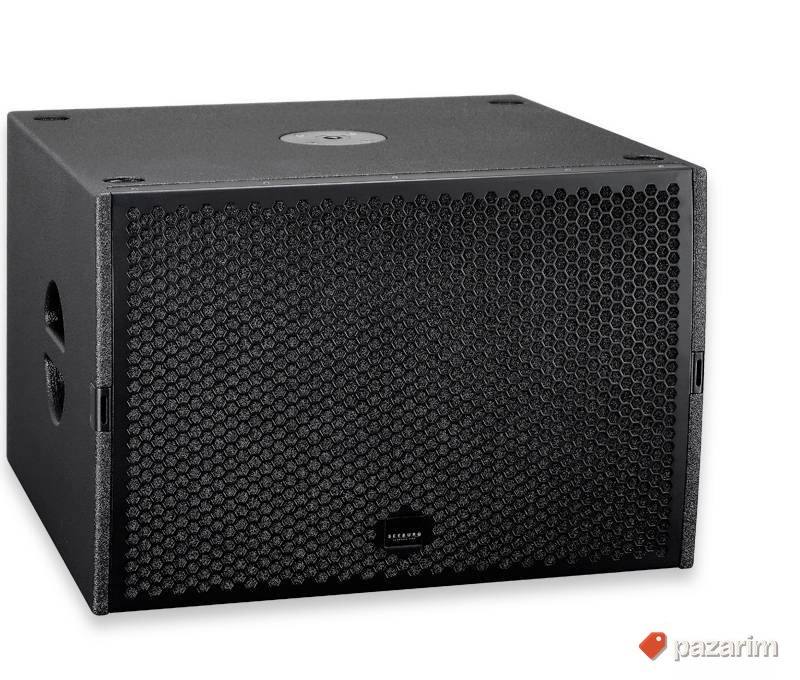

The G Sub 1501 dp++ is a universal 15“ high-power subwoofer featuring a lowprofile cabinet, 3-channel DSP electronics, and two signal inputs. The DSP offers a choice of four application-oriented presets and level compensations. Two supplementary integrated amplifiers are available to drive Hi-Mid or full-range systems. The 60 x 60 cm footprint allows stable deployment of larger Hi-Mid systems on a speaker pole. Good handling and solid bass response round off the package perfectly Speaker Components 15“ Nd (4“ VC) Description Digitally Powered Bass Extension Amp Power 1500 W AES (single mode) / 110-230 V 2400 W AES (dual mode) / 110-230 V 2 x 800 W AES / 4 Ω - HiMi Rated Current 4,0 A @ 230 V SPL Peak @ 1 m 135 dB Max. Input Signal 25 dBu DSP HDLM FPGA Processing 32 bit floating point AD / DA 24 bit / 96 kHz Latency 0,8 ms (analog in to analog out) Usable Range - 6 dB 35 Hz - 180 Hz Tuning Frequency excursion minimum 42 Hz Connectors 2 x Neutrik XLR in Neutrik PowerCon in 2 x Neutrik Speakon NL4MP out Handles 2 x Rigging / Fittings M20 on top Wheel board fittings Weight 29 kg (+ 6 kg wheel board) Size height x width x depth 40,0 x 60,0 x 60,0 cm
